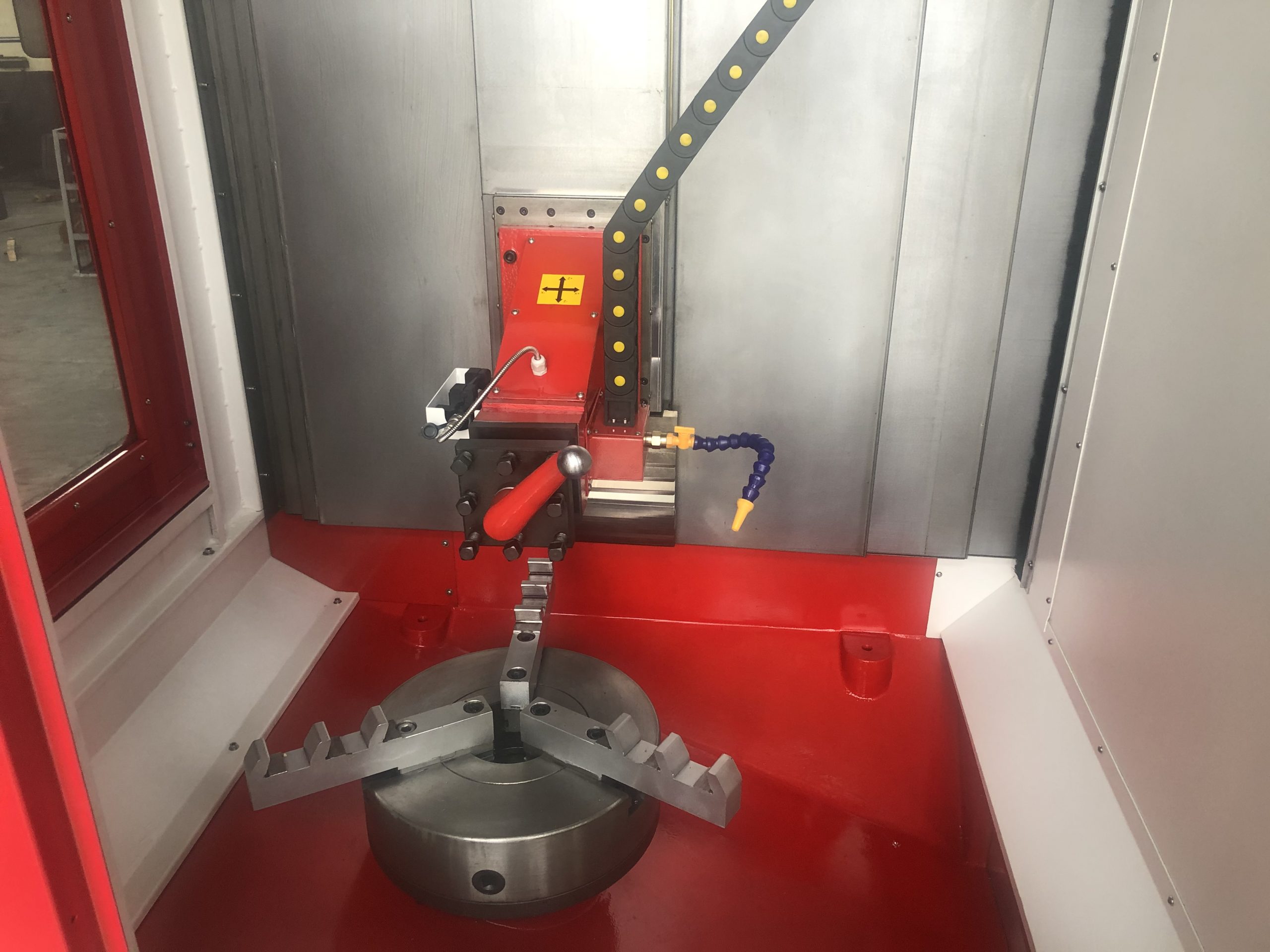

Boost the performance of your CNC Wheel repair lathe with the powerful AWR30VL. Experience cutting-edge technology and superior precision. Order now!
| Specification | AWR30VL |
| X axis travel | 500mm (19”) |
| Z axis travel | 450mm (17’’) |
| Jaw chuck | 12” with 3 step soft jaw |
| Alloy wheel gripping Range | 14’’~31’’ |
| Spindle motor | 5.5kw |
| X axis rapid traverse | 6m/min |
| Z axis rapid traverse | 6m/min |
| Cutting feed rate range | 0~200 mm/min |
| Position accuracy | X:0.01mm; Z:0.01mm |
| Re-position accuracy | X:0.007mm; Z:0.008mm |
| Machine Size (LxWxH ) | 1600 x 1530 x 2100 mm |
| Packing size: (LxWxH ) | 1880 x 1870 x 2280 mm |
| N.W. / G.W | 3000kg/ 3100kg |
