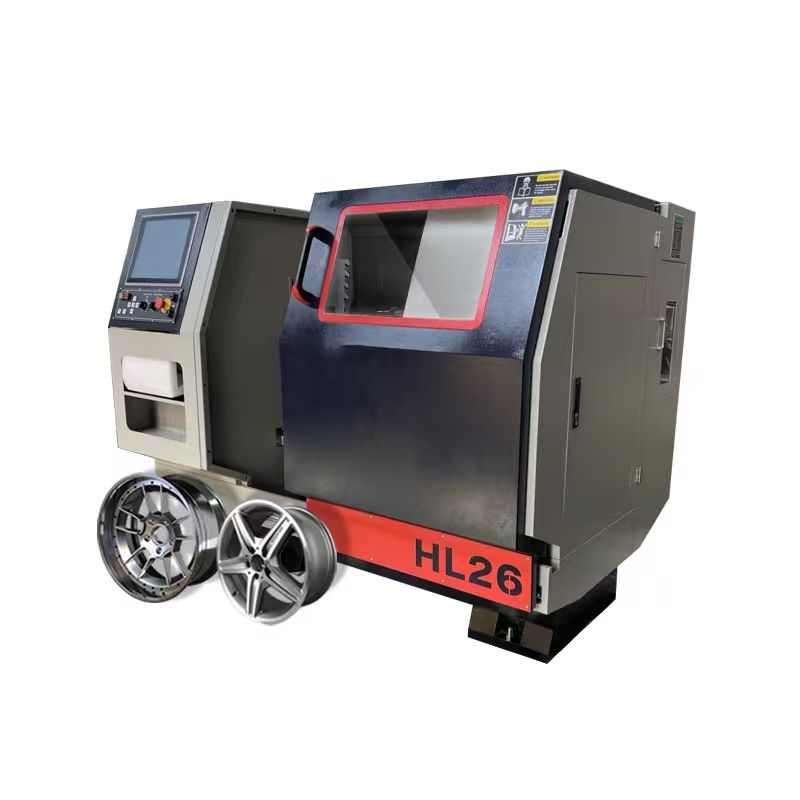

| Model | HL26 |
| X axis travel | 420mm |
| Z axis travel | 480mm |
| Jaw chuck | 12” with 3-step soft jaw |
| Alloy wheel gripping Range | 14’’~26’’ |
| Max.turning diameter | 820mm(32”) |
| Spindle motor | 5.5kw |
| X axis rapid traverse | 6m/min |
| Z axis rapid traverse | 6m/min |
| Cutting feed rate range | 0~200 m/min |
| Position accuracy | X:0.01mm; Z:0.01mm |
| Re-position accuracy | X:0.007mm; Z:0.008mm |
| Machine Size (LxWxH ) | 1970 x 1350 x 1650mm |
| Packing size: (LxWxH ) | 2070 x 1450 x 1950 mm |
| N.W. / G.W | 1450kg / 1550kg |
